Plastopia™ VDI 3400 Texture Card
-Your high-quality reference tool for accurate VDI 3400 texture measurement.
Explore the Textures

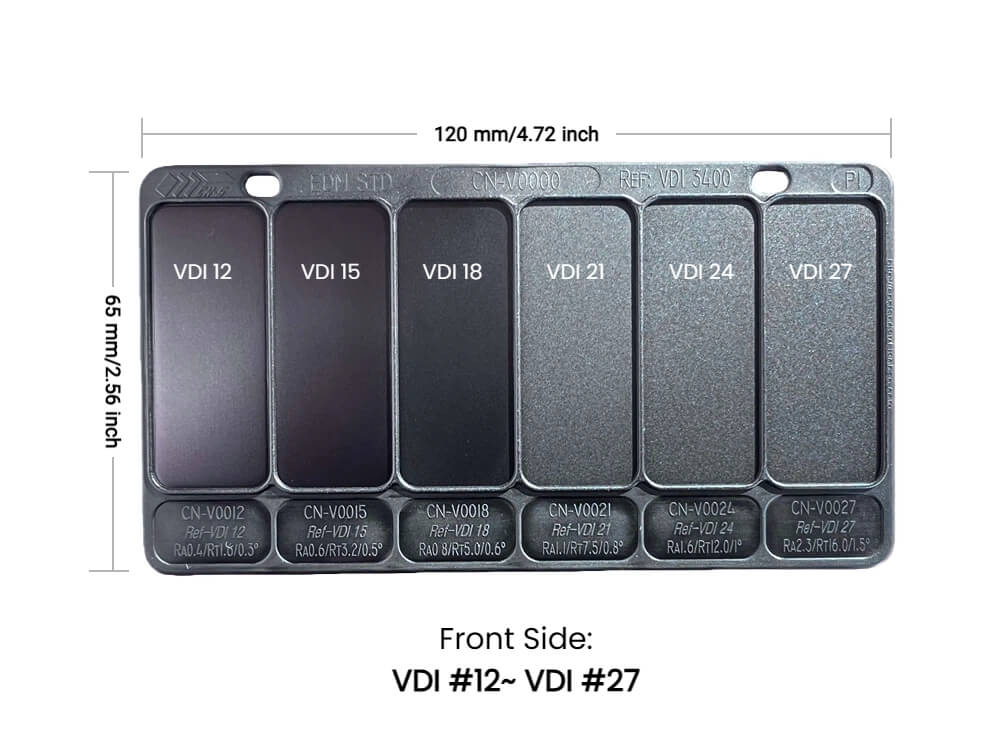

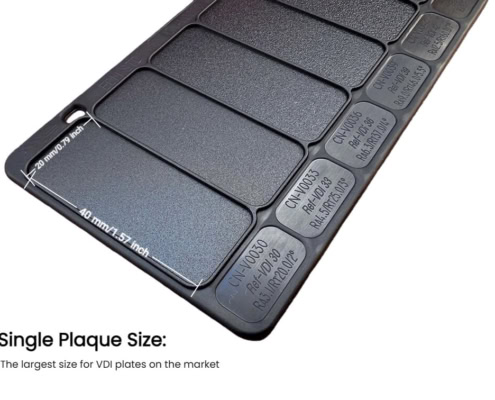

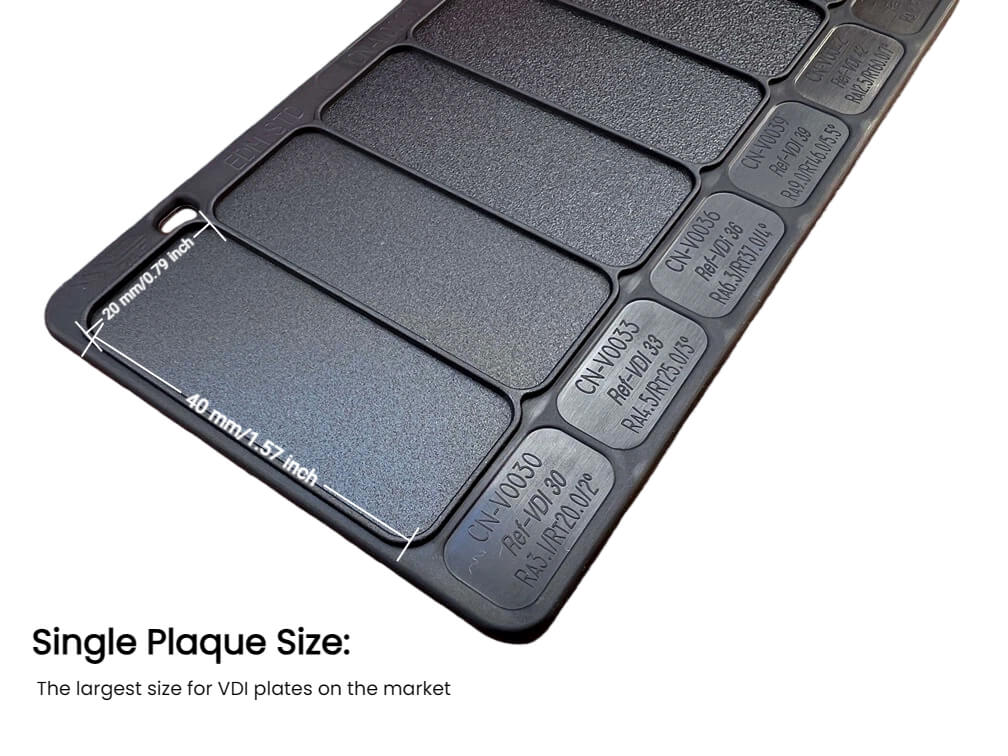

Take a closer look at the VDI 3400 Texture Card (160×65×2 mm) through our detailed pictures. This card is thoughtfully designed with 12 complete plaques on two sides. It also has recommended drafts and RA data.

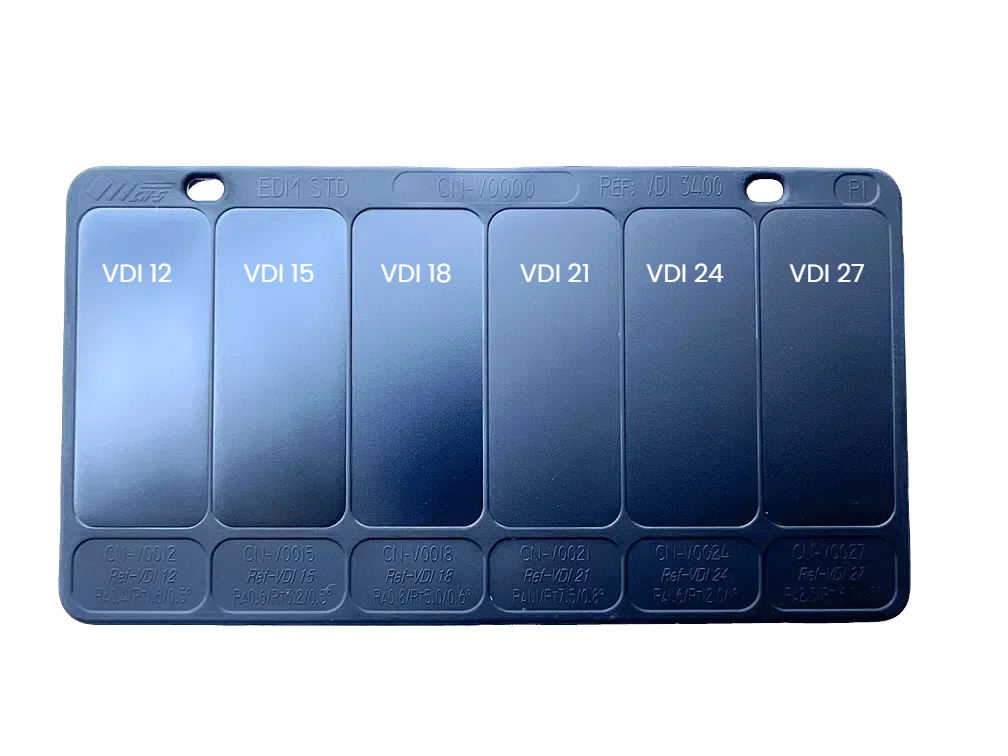

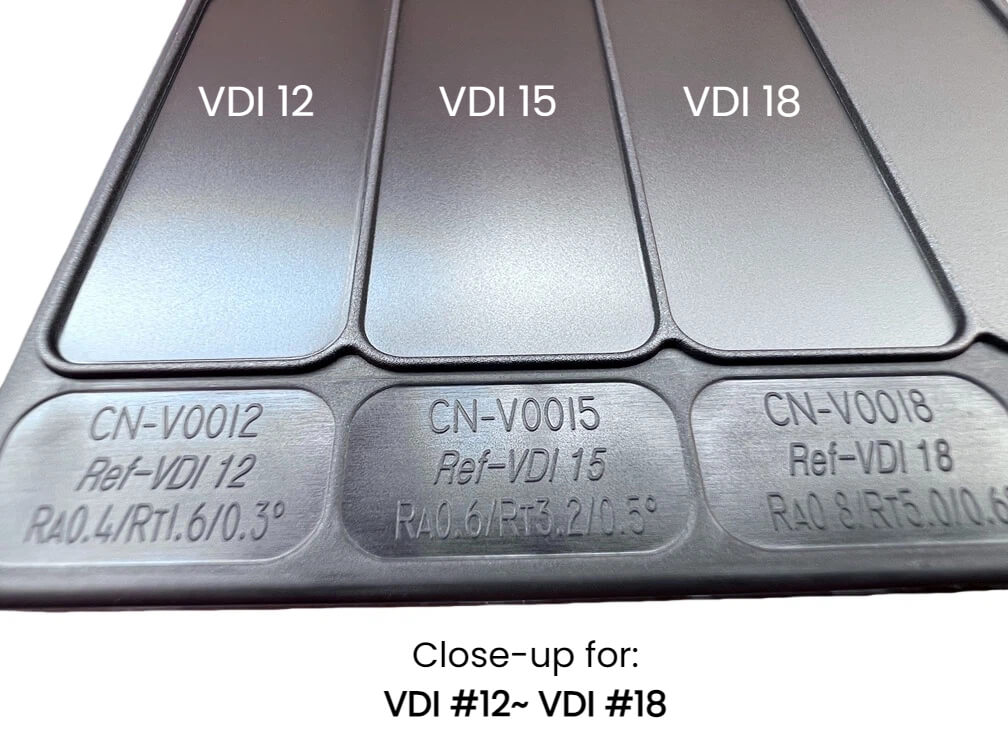

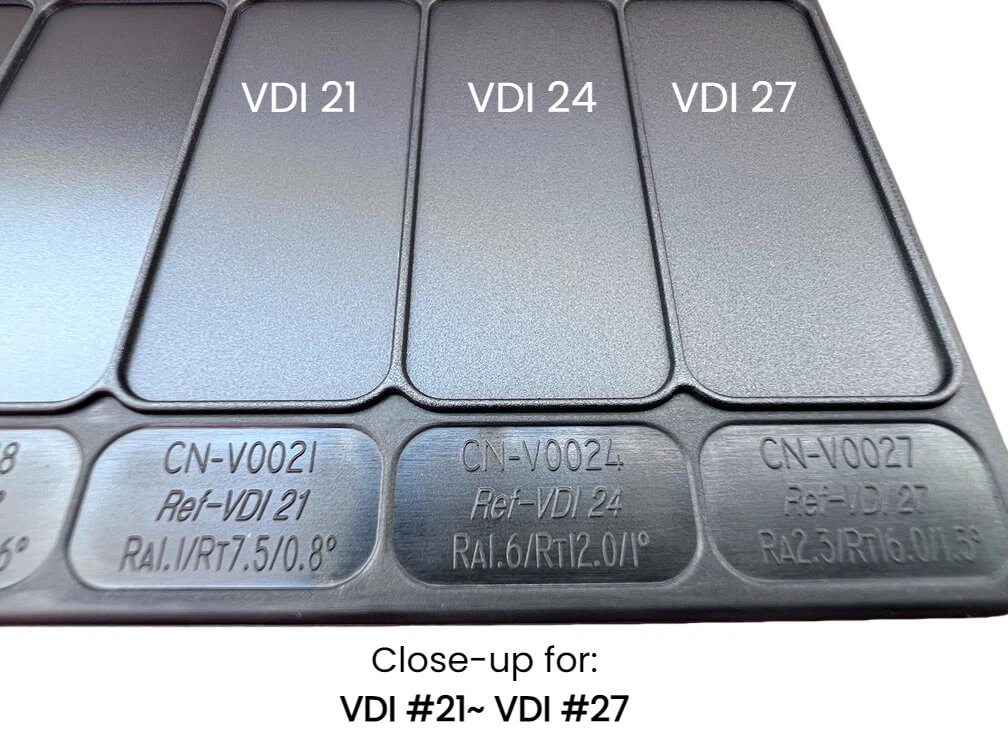

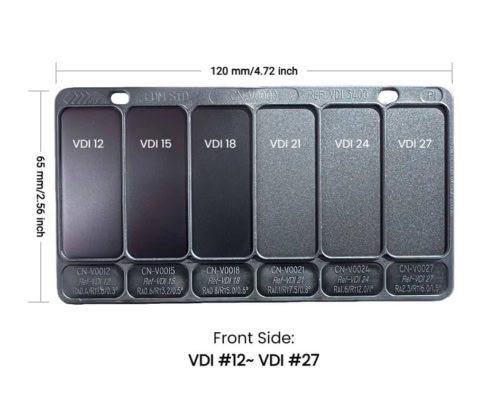

- Side A: VDI 12, VDI 15, VDI 18, VDI 21, VDI 24, and VDI 27.

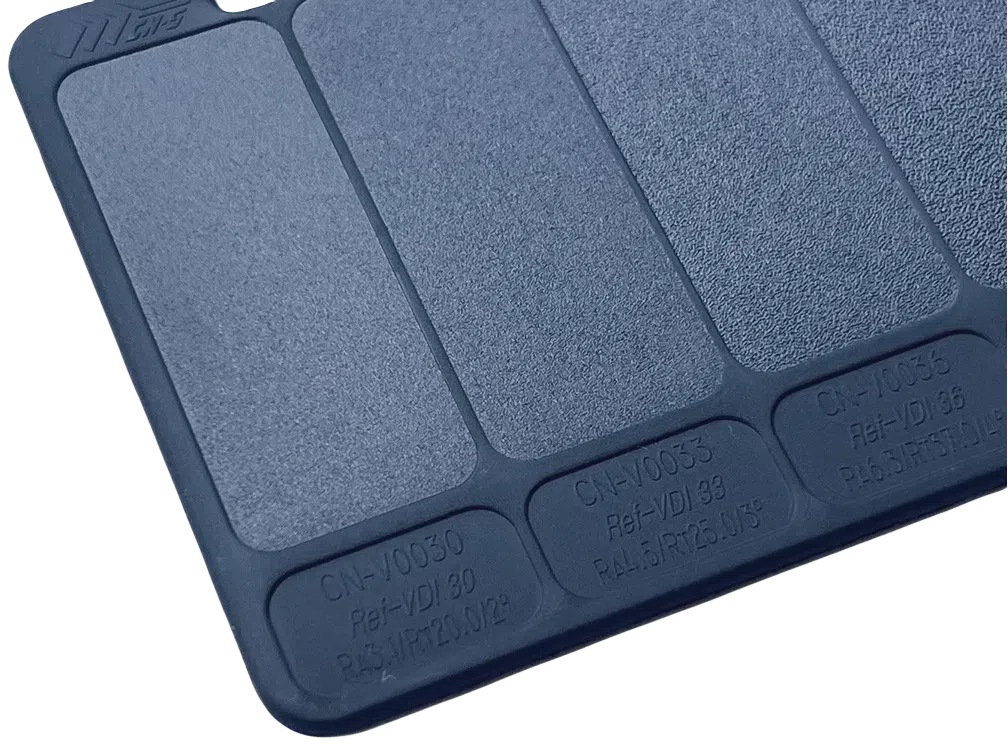

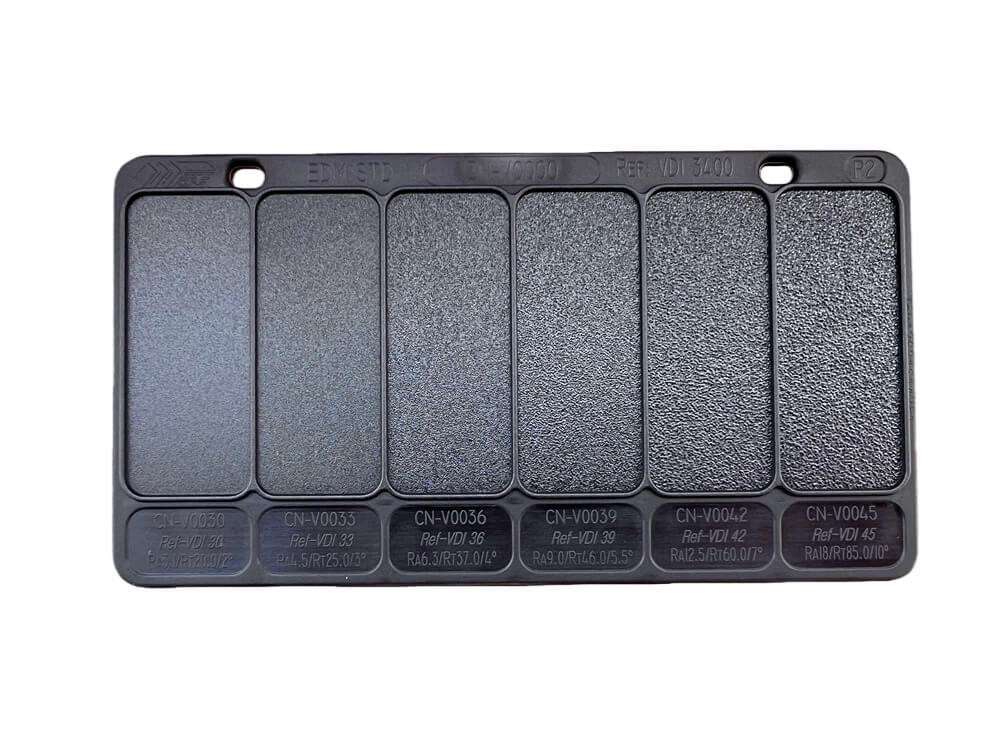

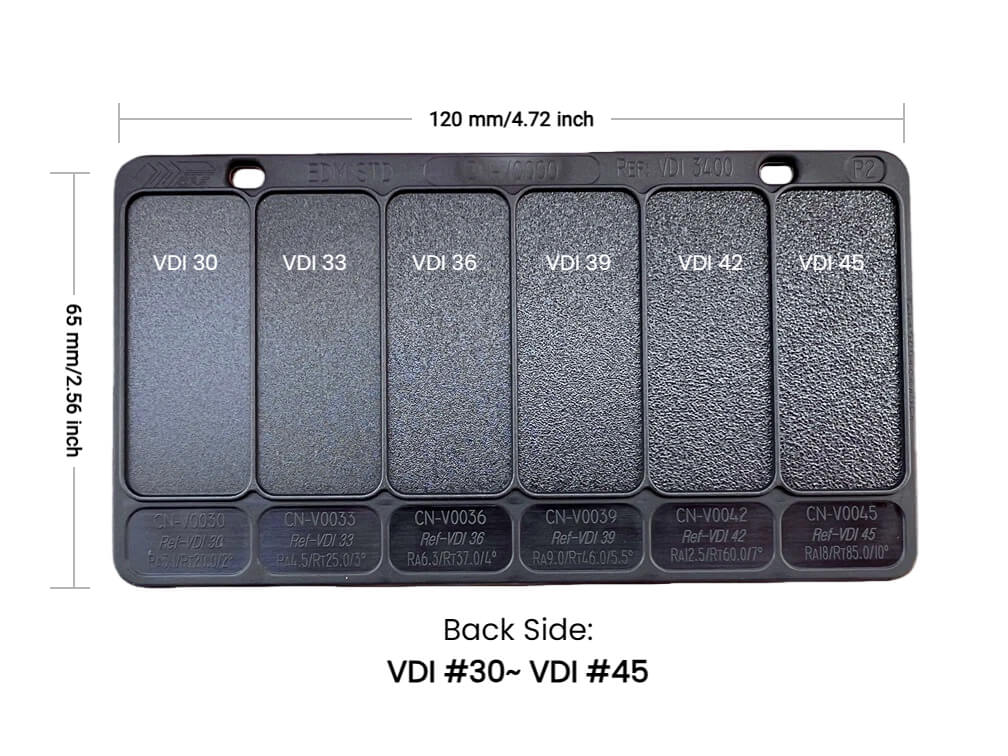

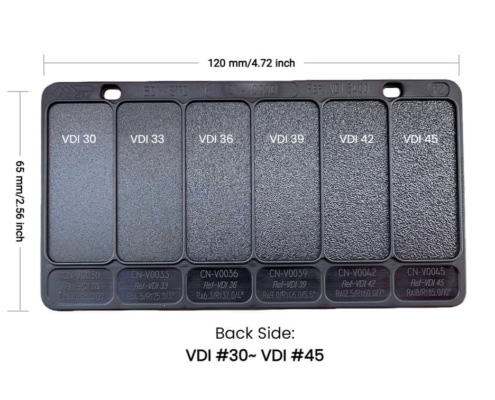

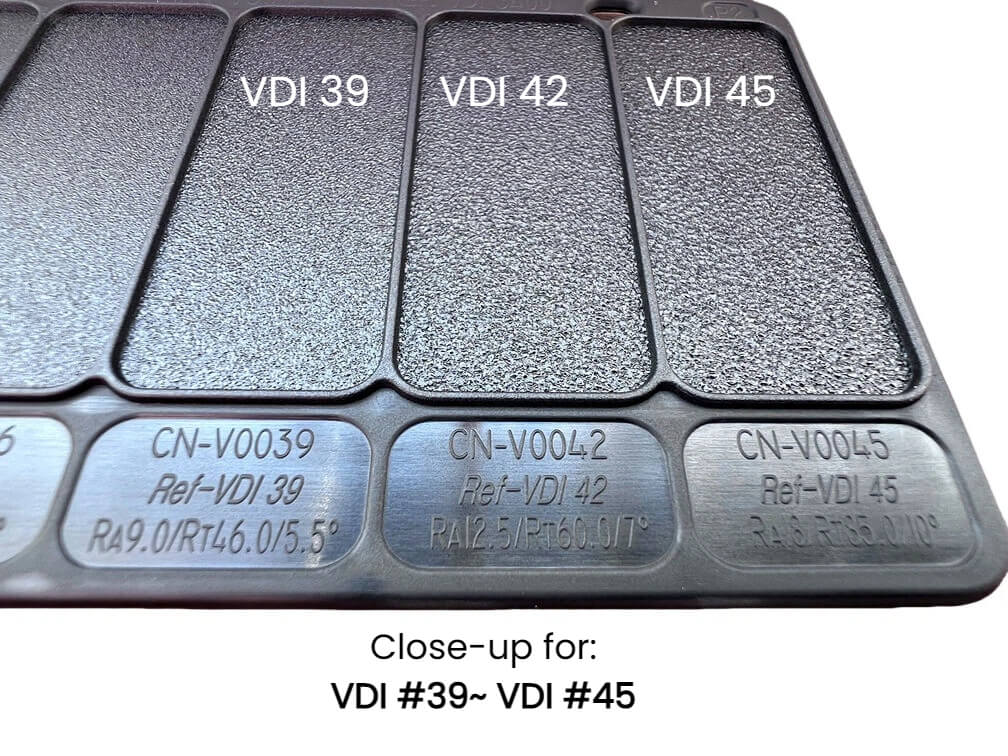

- Side B : VDI 30, VDI 33, VDI 36, VDI 39, VDI 42, and VDI 45.

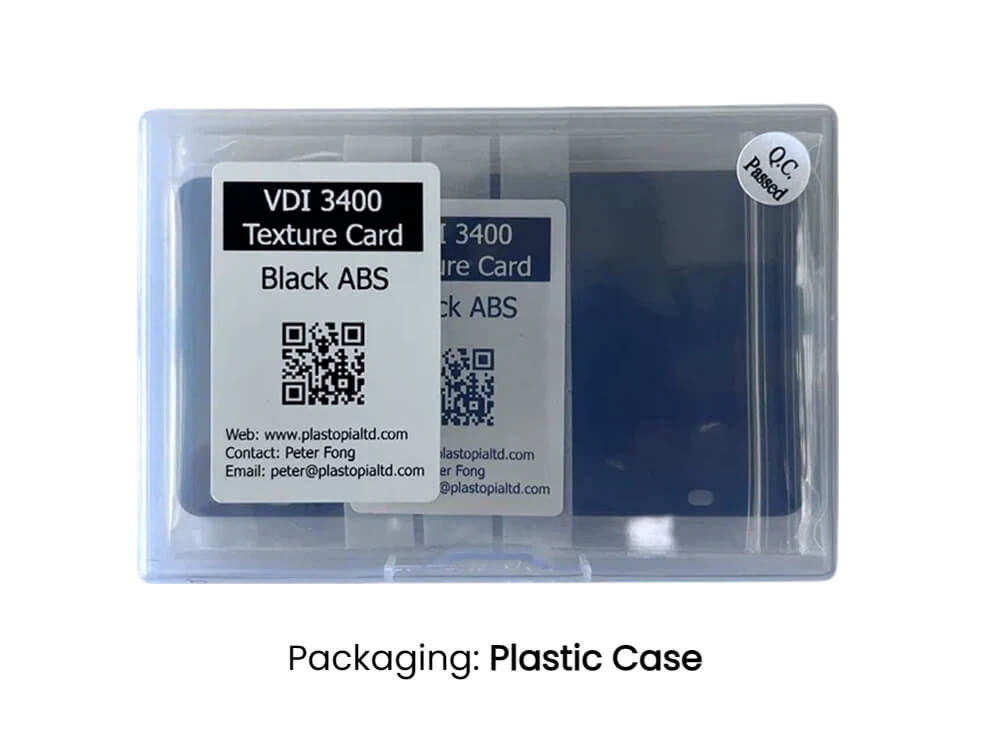

Unboxing the VDI 3400 Texture Card
Join us as we unbox Plastopia’s palm-sized VDI 3400 texture card. This compact guide is a valuable tool for understanding VDI 3400 Texture Standard.
Unlike metal texture plaques, you can feel and see the final texture that your molded plastic parts will have. Watch the video to see it in action!
Trusted by Worlds’ Leading Companies
25+
Plastic Materials
The Plastopia™ VDI 3400 Texture Card is available in a variety of +25 plastic materials ranging from commodity plastics such as ABS and PP, to engineering plastics like HIPS and PA+GF30.
- ABS (Black/ Grey/ Red/ Blue/ White)
- ABS-PC (Black/ White)
- PC (Black/ White/ Clear)
- PC+30GF (Black)
- PMMA (Clear/Black)
- PP (Black)
- HDPE (Black)
- HIPS (Black)
- PBT (Black/Grey)
- TPE (Black-Shore A35/A50/A70)
- PA6+GF30 (Black)
- PA6+GF15 (Black)
- PA6 (Black)
- POM (Black)
- PPSU (Black)
- PPO (Black)
Why
Materials Matter?
Different materials make the surfaces look different. Here are some example situations you may need a specific material for your project.
Clear PC/ PMMA
If you want to select a texture that can have very strong light diffusion and reflection, the Plastopia™ transparent VDI 3400 Texture Card is a great option to you.
TPE Shore A 35
Textured surfaces when molding soft polymers such as TPE or TPR don’t pick up the finishes very well.
With our TPE material card, you could test not just the right material but also the right hardness. We currently have 3 Shore A degree for your option: Shore A35/A50/A70.
PA6+30%GF
Nylon (PA6) materials with fiber can significantly impact the surface finish of the final product. If you work with a Nylon part, it would be a good idea to get a card with this material to match.
We currently provide three Nylon material, pure Nylon, Nylon with 15%GF and Nylon with 30%GF.
Join the 3,000+ Designers Worldwide…
High quality VDI 3400 Texture Card with fast delivery 2-5 days.
Customize Your Own VDI 3400 Texture Card
Didn’t find the color or material you need? Plastopia provides customization service as well. You could ship us the raw plastic material to mold your own VDI 3400 Texture Card.
Pair with SPI Finish Card
The SPI Finish refers to the American surface finish standard set by SPI (Society of the Plastics Industry). The standard covers 12 SPI grades of polish finishes: SPI A1 to #SPI D3 (RA 0.012 μm to RA 18.00μm).
The VDI 3400 Texture Card and SPI finish Card combo is a set of powerful tool for most of the surfaces request, from matt to polish surfaces.
Hear from Some of the 3,000+ Customers
who have benefited from our VDI 3400 Texture Card.
We’ve tried other texture cards in the past, but nothing compares to the VDI 3400 from Plastopia. It’s in a league of its own.
We love the VDI 3400 texture card from Plastopia. It’s become an essential part of our toolkit.
Plastopia’s VDI 3400 texture card is the best we’ve used. It’s worth every penny.
The Card includes 12 VDI plaques:
- Side A: VDI 12, VDI 15, VDI 18, VDI 21, VDI 24, and VDI 27.
- Side B : VDI 30, VDI 33, VDI 36, VDI 39, VDI 42, and VDI 45.
Shipping Lead Time:
- FedEx Priority: 2-5 Days.
- DHL Economic: 10-15 Days.
Order Your
VDI 3400 Texture Card
Fill in the form as below.
Our sales representive will reply you within 12 hours.
