Charmilles Technologies VDI 3400 Ref Plate
-Trusted and used by Fortune 500 companies including Amazon, Apple, Bosch and many others.
Explore the VDI 3400 Standard

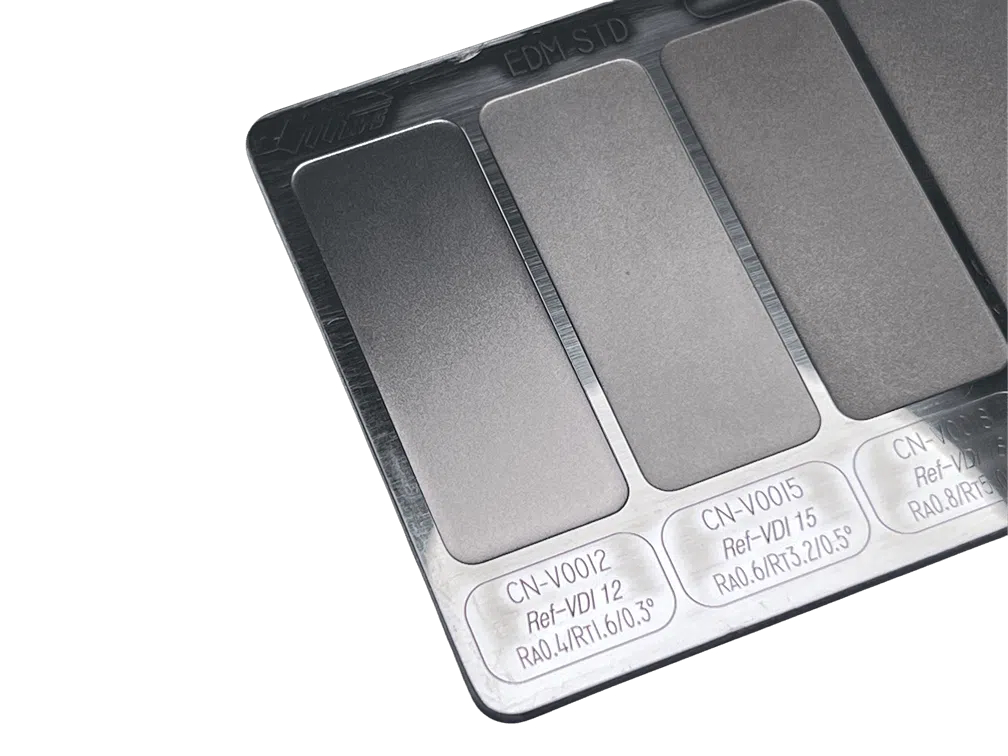

The Charmilles Technologies VDI 3400 Ref Plate is thoughtfully designed with 12 EDM Surface Finishes on each of its two sides. It includes data for RA conversion, RZ conversion, and recommended drafts on each plaque. The detailed table can be checked as shown below.
Each plaque is at 40×20 mm. The largest plaque size on the texture market.
- VDI Number
- VDI #12
- VDI # 15
- VDI #18
- VDI #21
- VDI #24
- VDI # 27
- VDI #30
- VDI #33
- VDI #36
- VDI #39
- VDI #42
- VDI #45
- RA (µm)
- 0.4
- 0.6
- 0.8
- 1.1
- 1.6
- 2.3
- 3.1
- 4.5
- 6.3
- 9.0
- 12.5
- 18.0
- RT (µm)
- 1.6
- 3.2
- 5.0
- 7.5
- 12.0
- 16.0
- 20.0
- 25.0
- 37.0
- 46.0
- 60.0
- 85.0
- Draft (°)
- 0.3
- 0.5
- 0.6
- 0.8
- 1.0
- 1.5
- 2.0
- 3.0
- 4.0
- 5.5
- 7.0
- 10.0
Unboxing Charmilles Technologies VDI 3400 Ref Plate
Join us as we unbox Plastopia’s Charmilles Technologies Ref Plate. This compact guide is a valuable tool for understanding VDI 3400 Texture Standard.
Unlike plastic texture plaques, the stainless plate is more precision and wear-resistant for long-time use. Watch the video to see it in action!
Trusted by Worlds’ Leading Companies
+25 Plastics
VDI 3400 Textures
Besides stainless steel plates, we also offer 1:1 plastic plates in a variety of
over 25 plastic materials, ranging from commodity plastics such as ABS and
TPE to engineering plastics like POM and PA+GF30.
Besides stainless steel plates, we also offer 1:1 (120×65×2 mm) plastic plates in a variety of over 25 plastic materials, ranging from commodity plastics such as ABS and TPE to engineering plastics like POM and PA+GF30.
- ABS (Black/ Grey/ Red/ Blue/ White)
- ABS-PC (Black/ White)
- PC (Black/ White/ Clear)
- PC+30GF (Black)
- PMMA (Clear/Black)
- PP (Black)
- HDPE (Black)
- HIPS (Black)
- PBT (Black/Grey)
- TPE (Black-Shore A35/A50/A70)
- TPU (Black-Shore A50/A90)
- PA6+GF30 (Black)
- PA6+GF15 (Black)
- PA6 (Black)
- POM (Black)
- PPSU (Black)
- PPO (Black)
Join the 3,000+ Designers Worldwide…
High quality Charmilles Technologies VDI 3400 Ref Plate with fast delivery 2-5 days.
Customize Your Own Charmilles Technologies Plate
If our Charmilles Technologies 3400 Ref Plate doesn’t meet your requirements, Plastopia also provides customization services, such as other RA or VDI numbers in customized sizes. Below are some examples of customization cases for your reference.
VDI #0, #3, #6 , #9, #12, #15
Size:180×200×10 mm
RA #0.2, #0.4, #0.8 , #1.6
Size: 200×150×2 mm
YS # 7295 Plate
Size: 450×450×2 mm
Hear from Some of the 3,000+ Customers
who have benefited from our Charmilles Technologies VDI 3400 Ref Plates.
We’ve been using the VDI 3400 Ref Plate from Plastopia for months now, and it has consistently delivered exceptional performance. Its robust construction and precise measurements make it a must-have tool in our workshop
I highly recommend the VDI 3400 Ref Plate from Plastopia to anyone in the machining industry. Its robust construction and precise measurements make it a valuable investment for improving productivity and machining accuracy.
Using the VDI 3400 Ref Plate from Plastopia has allowed us to achieve unparalleled precision in our machining operations. Its versatility and ease of use have exceeded our expectations.

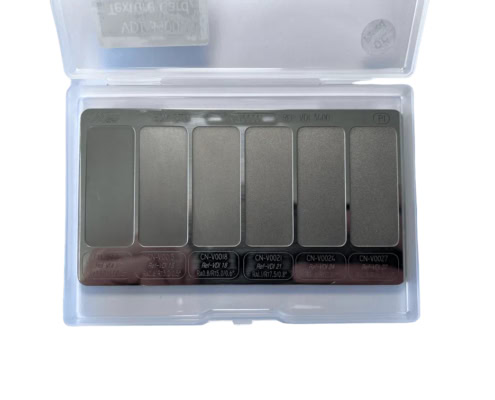

The Charmilles Technologies VDI 3400 Ref Plate includes 12 VDI plaques:

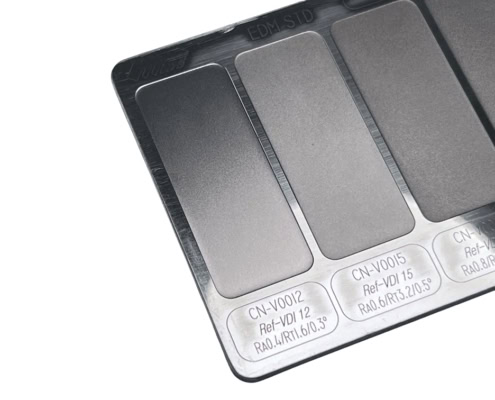

- Side A: VDI 12, VDI 15, VDI 18, VDI 21, VDI 24, and VDI 27.

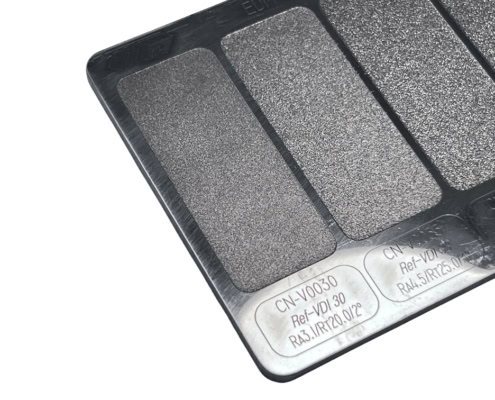

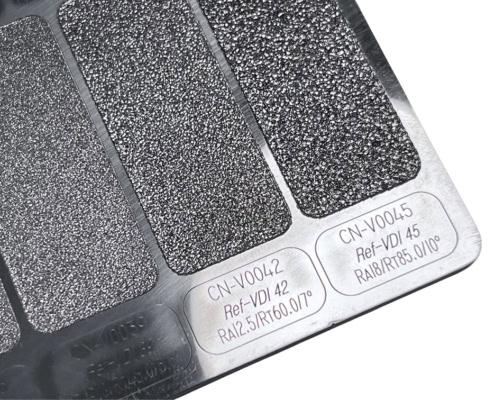

- Side B : VDI 30, VDI 33, VDI 36, VDI 39, VDI 42, and VDI 45.
Shipping Lead Time:
- FedEx Priority: 2-5 Days.
- DHL Economic: 10-15 Days.
Order Your Charmilles Technologies Plate
Fill in the form as below.
Our sales representive will reply you within 12 hours.
